| External dimensions (mm) | 5900 L *2450 W *2570 H |
| Internal dimensions (mm) | 5730 L *2280 W *2250 H |

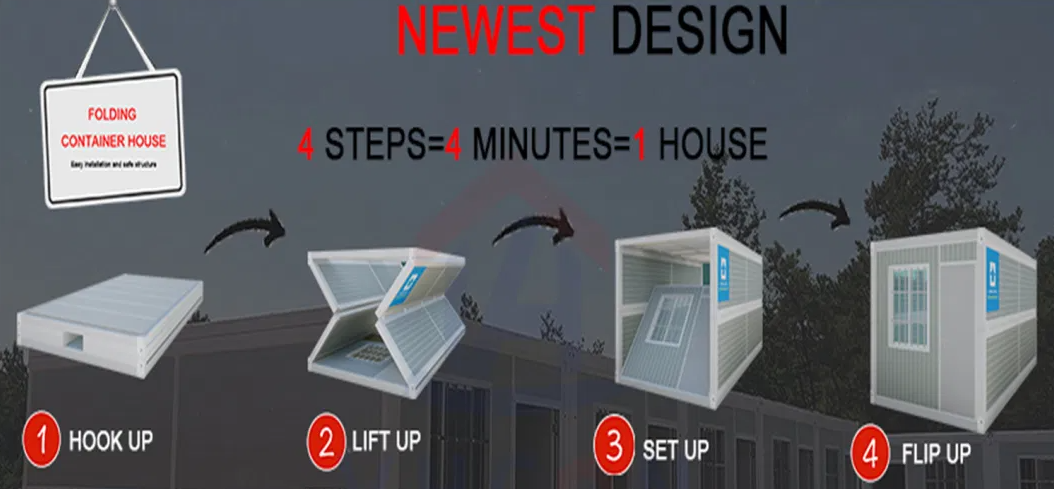

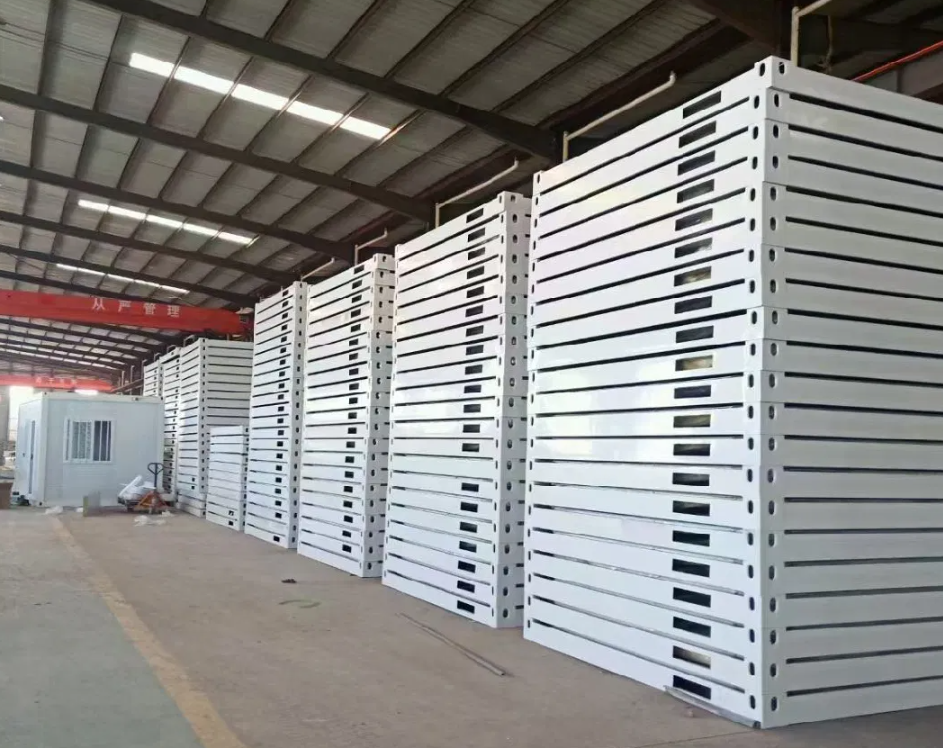

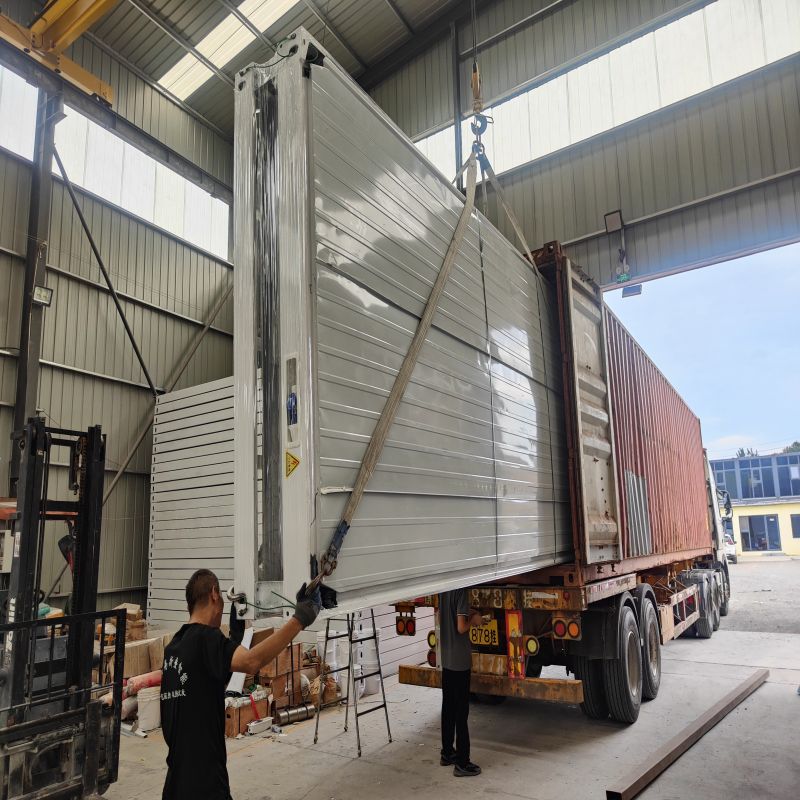

| Folded state (mm) | 5900*2450*560 |
| Total mass (kg) | 1000 |

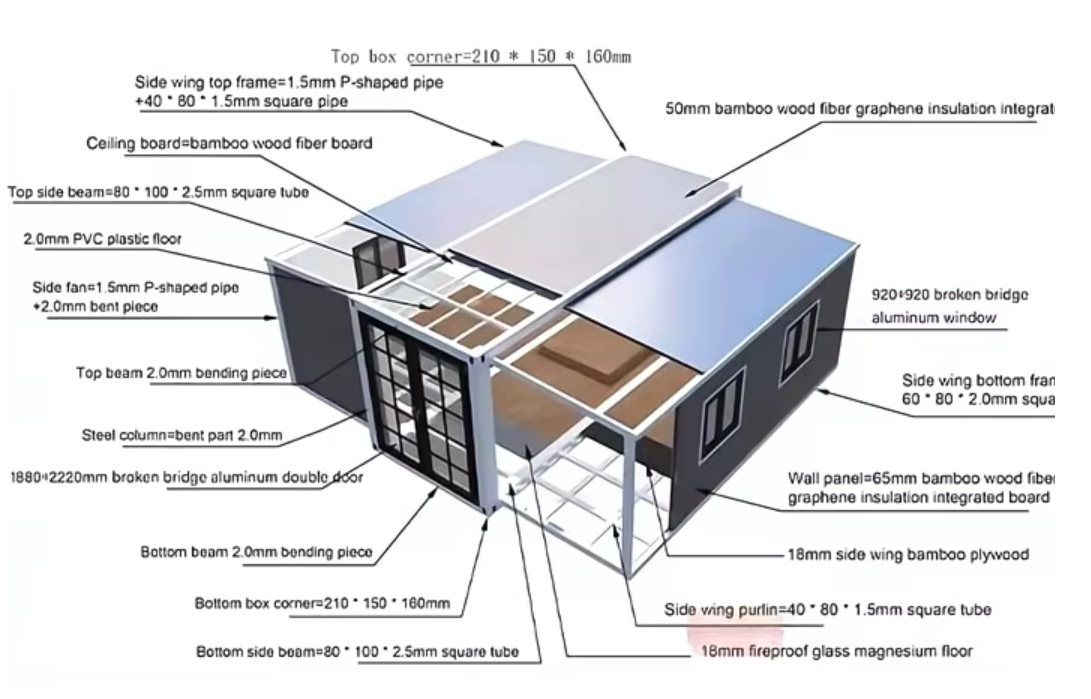

| Frame structure top main beam | Q235B rectangular square tube 60×80×1.5mm |
| Bottom main beam | Q235B rectangular square tube 80×140×1.5mm |
| Front and rear main beam | Q235B rectangular square tube 60×80×1.5mm |
| Side wall frame | Q235B Rectangular Square Tube 40×80×1.5mm |
| Bearing capacity | Q235B Rectangular square Pipe 40 x 40 x 1.5mm at the bottom |
| Top bearing | Q235B rectangular square pipe 40 x 40 x 1.5mm |
| Hanging head | Q235B 125*200* (4mm) |
| Folding Hinge | Galvanized hinge 13mm |
| Box top overall frame protection paint | Electrostatic spray/highlight white |
| External roof | Galvanized sheet 0.5mm |
| Internal ceiling | Color steel veneer V930*0.25mm |
| Wall panel Heat insulation glass silk | cotton Glass silk cotton Roll 50mm (bulk weight 16kg) |
| Side wall | 65mm composite plate 0.23mm+ basalt cotton (bulk weight 50kg) +0.23mm |
| Front and rear wall | Panel 65mm composite panel 0.23mm+ basalt cotton (bulk weight 50kg) +0.23mm |
| Floor | Fireproof glass magnesium floor 15mm |
| Electrical wiring of electrical system | Shall be installed in strict accordance with moisture-proof regulations. All electrical products shall comply with CE certification. According to the circuit engineering specifications to connect the circuit, indoor into the line 4 square GB soft copper wire, 20A circuit breaker 1, socket into the line 2.5 square, five hole single open socket 1, air conditioning socket 1, 1 lamp. |
| Security door | High quality security door (warm white) Size 930mm*1970mm |
| Window | 930*930 Plastic steel anti-theft integrated window, glass thickness 4mm (warm white) |
| Quality assurance | The whole box to A class fire standard. One year Warranty (China) |
