| Name | Items | Specification |
|---|---|---|

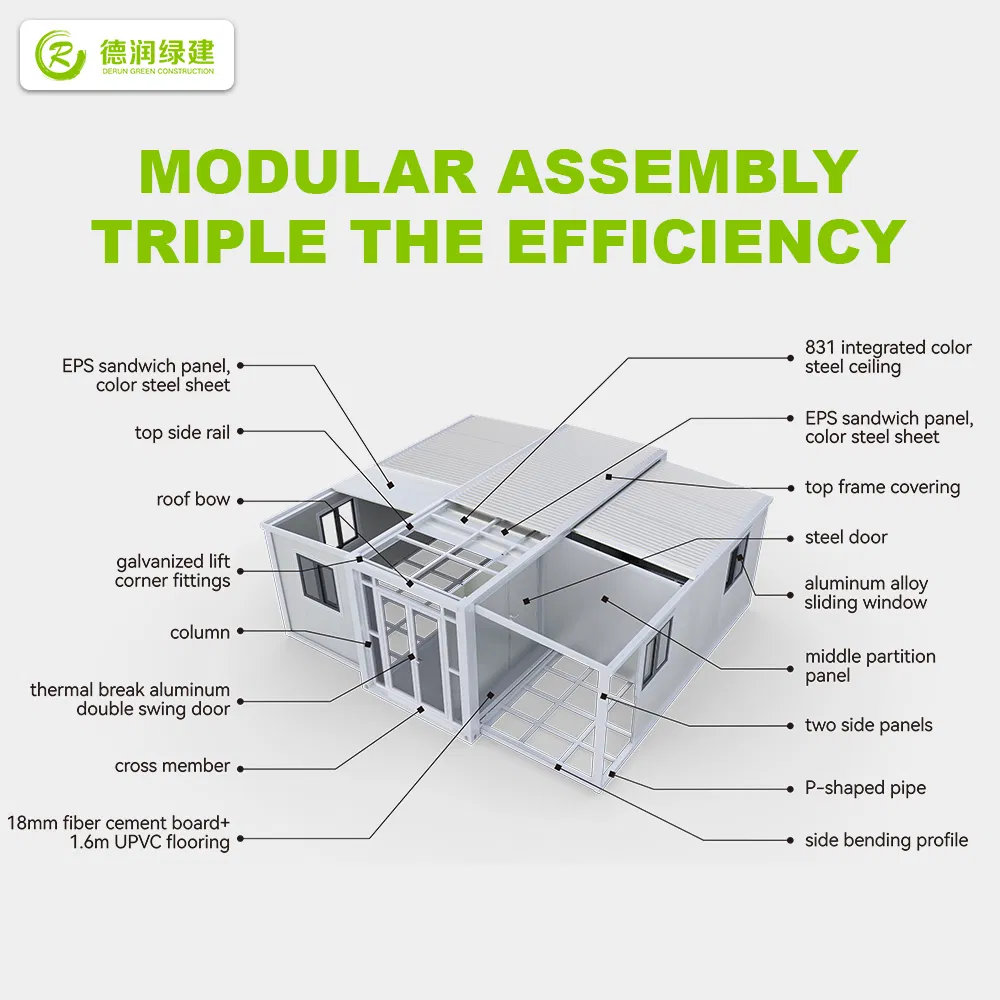

| Main frame (all galvanized) | Top side beam | 80*100*2.5mm square tube |
| Top beam | bent part 3.0mm | |
| Bottom side beam | 80*100*2.5mm square tube | |
| Bottom beam | bent part 3.0mm | |
| Galvanized Hanger Head | Galvanized hanger 210*150*160, 4.0mm | |
| Steel Columns | bent part 3.0mm | |
| Side frames (fully galvanized) | Roof frame | 40*80*1.5mm P-tube |
| 40*80*1.5mm square tube | ||
| Bottom frame | 60*80*2.0mm square tube | |
| Folding hinge | 13mm Recessed galvanized hinge | |
| Overall frame protection coating | Spray | Electrostatic spray/Plain plastic powder |
| Top of the box | Topside strake | t50mm EPS color steel plate |
| Internal ceiling panel | Model 200 gusset plate | |
| Ground | Main frame | Fireproof glass magnesium floor 20mm (thickness) |
| Two wings part | bamboo plywood 18mm (thickness) | |
| Doors and windows | Plastic steel sliding window (standard) | 920*920mm |
| Steel double (single) door (standard) | 950*2035mm | |
| Electric system (Standard 220V/can OEM with 110V) |
Circuit breaker system | 20A leakage protector: 1. The voltage is 220V, 50HZ |
| Lamp | 4 square lights, 2 round lights, 1 large round lights | |
| Socket | Socket standard can be configured according to customer's area or other requirements | |
| Lamp switch | Double-open, single-key switch | |
| Wiring | Inlet line 6², air conditioning socket 4², general socket 2.5², lighting 1.5². |
| Size Type | 700Mimi | 10ft | 20ft | 30ft | 40ft |
|---|---|---|---|---|---|
| Expand Dimension (mm) | 5900*4800*2480 | 2950*6300*2480 | 5900*6300*2480 | 9000*6220*2480 | 11800*6220*2480 |
| Internal Dimension (mm) | 5400*4640*2240 | 7510*6140*2240 | 5460*6140*2240 | 8840*6060*2240 | 11540*6060*2240 |
| Folded Size (mm) | 5900*700*2480 | 2950*2200*2480 | 5900*2200*2480 | 9000*2200*2480 | 11800*2200*2480 |
| Cover Area (m²) | 27.5m² | 18.5m² | 37m² | 56m² | 73m² |
| Total Net Weight (T) | 2.1 | 1.65 | 3.12 | 4.25 | 5.3 |
| 40HQ Load Capacity (sets) | 6 | 4 | 2 | 2 | 2 |
